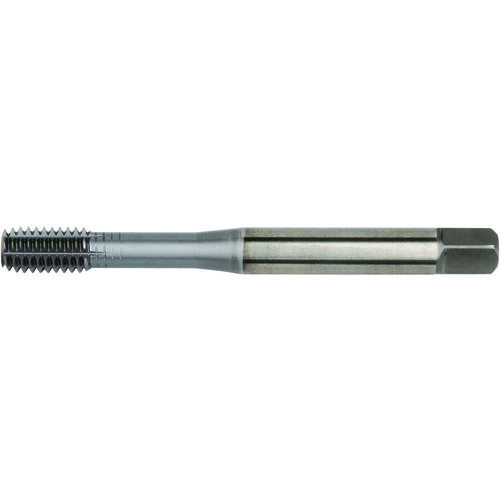

M16X2 D12 FT BOTT DIN ANSI HSS
| Tool Type | High Performance Tap|Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M16 | Helix Angle | 45 Degrees|CW |
| Thread Pitch (TP) | 2 mm | Chamfer | 1P-2P |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 20 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 12.19 mm | Style | Bottoming |
| Thread Tolerance Class (TCTR) | D12 | Cutting Edge Material | HSSCoPM |
| Tap Standard | ANSI|DIN | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Thread Size | M16 × 2 |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.2152
