M6X1 D8 FT SBOT DIN ANSI CH HS

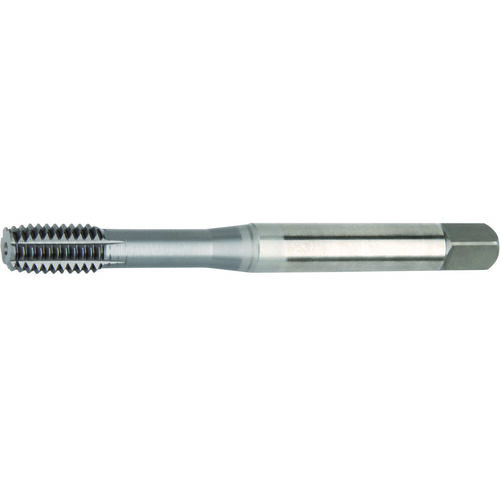

Forming Tap; M6 × 1 mm ; 80 mm OAL × 6.48 mm Shank Dia. ; D8
Additional Tariff Surcharge of 8.5 %
| Tool Type | High Performance Tap|Forming Tap | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | M6 | Helix Angle | 45 Degrees|CW |
| Thread Pitch (TP) | 1 mm | Chamfer | 2P-3P |
| Overall Length (OAL) | 80 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 13 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 6.48 mm | Style | Semi-Bottoming |
| Thread Tolerance Class (TCTR) | D8 | Cutting Direction (HAND) | Right Hand |
| Tap Standard | ANSI|DIN | Thread Size | M6 × 1 |
| Thread Standard | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.033
