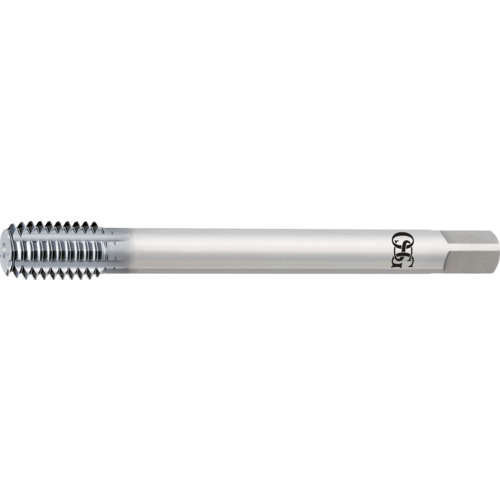

M5 × 0.8 D4 EXOPRO S XPF
Forming Tap; M5 ; 70 mm OAL × 25.4 mm LU × 4.92 mm Shank Dia. ; HSSCo ; TiCN ; D4 ; Series 16350
| Tool Type | Forming Tap | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M5 | Coating | TiCN |
| Overall Length (OAL) | 70 mm | Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 7/8″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 25.4 mm | Chamfer | 2.5P |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm | Measurement Type | Metric |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | D4 | Cutting Edge Material | HSSCo |
| Tap Standard | DIN | Series/List # | 16350 |
| Thread Standard | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.64000
Package Width
.36000
Package Height
.34000
Package Weight
0.025
