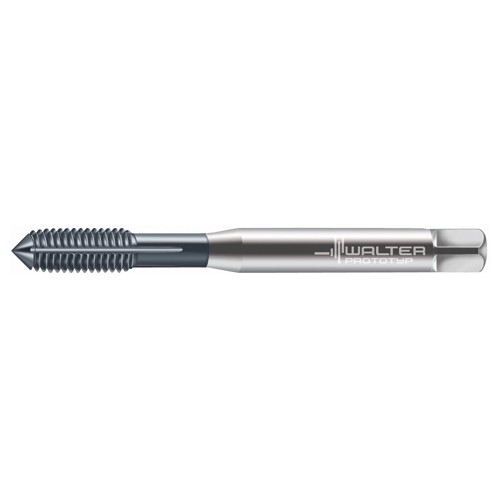

M4x0.7 6HX 5 Flute HSS TiCN Thread Former
Forming Tap; M4 × 0.7 mm ; 69 mm OAL × 4.5 mm Shank Dia. ; HSS ; TiCN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M4 | Coating | TiCN |
| Thread Pitch (TP) | 0.7 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 69 mm | Helix Angle | CW|40 Degrees |
| Thread Cutting Part Length (THL) | 12 mm | Flute Length | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Edge Material | HSS |
| Tap Standard | DIN 2174 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Thread Size | M4 × 0.7 |
Product Features
| Family Description | D7061706-M4 | Country of Origin | Germany |
Shipping Info
Package Weight
0.02
