GT225026 M10X1.25 6HX FT SBOT 2174

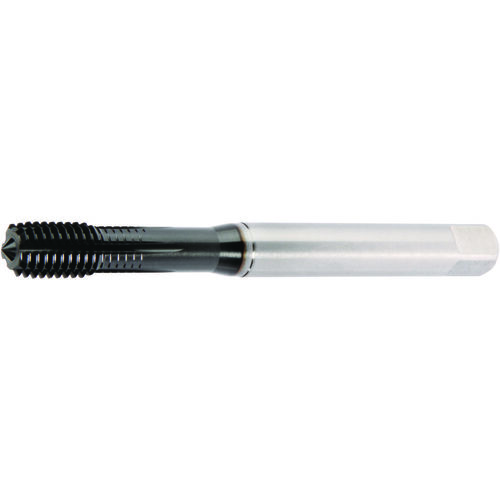

Forming Tap; M10 × 1.25 mm ; 100 mm OAL × 10 mm Shank Dia. ; HSSCo-PM ; 6HX
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M10 | Chamfer | 2P-3P |
| Thread Pitch (TP) | 1.25 mm | Square Size | 8 mm |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 16 mm | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | HSSCo-PM |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Direction (HAND) | Neutral |
| Tap Standard | DIN2174 | Shank Type | Round w/ Drive Square |
| Thread Standard | Metric | Thread Size | M10 × 1.25 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.047
