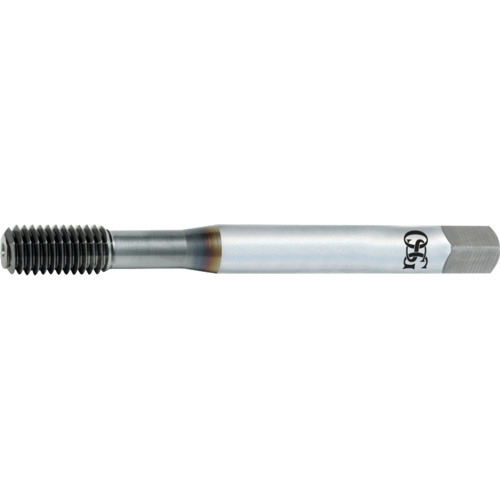

M5X0.8 D4 2.5P NRT TIN
Forming Tap; M5 ; 60 mm OAL × 22.6 mm LU × 4.92 mm Shank Dia. ; HSSCo ; TiN ; D4 ; Series 14101
| Tool Type | Forming Tap | Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M5 | Coating | TiN |
| Overall Length (OAL) | 60 mm | Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 7/8″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 22.6 mm | Chamfer | 2.5P |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm | Measurement Type | Metric |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | D4 | Cutting Edge Material | HSSCo |
| Thread Standard | Metric | Series/List # | 14101 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.025
