2-56 H4 1.5P NRT TICN

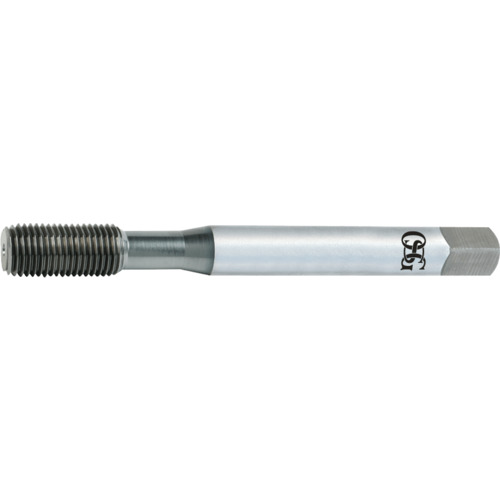

Forming Tap; #2 - 56 ; 1-3/4″ OAL × 0.476″ LU × 0.141″ Shank Dia. ; HSSCo ; TiCN ; H4 ; Series 14001
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | #2 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1-3/4″ | Threads per Inch (TPI) | 56 |
| Thread Cutting Part Length (THL) | 7/16″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 0.476″ | Chamfer | 1.5P |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H4 | Cutting Edge Material | HSSCo |
| Thread Standard | UNC | Series/List # | 14001 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | #2 - 56 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.005
