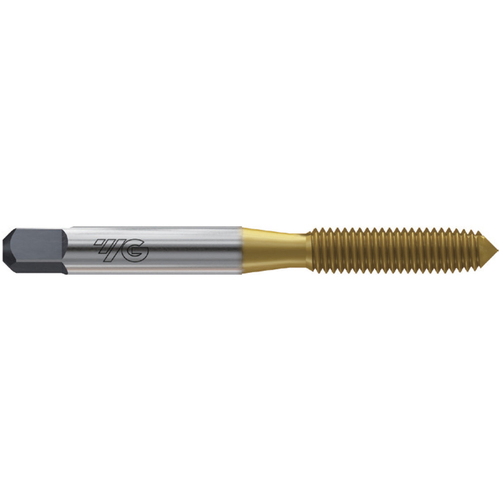

Forming Tap; M5 × 0.8 mm ; 2.38″ OAL × 1.51″ LU × 0.194″ Shank Dia. ; HSS-E ; TIN ; D7 ; Series ZD
Forming Tap; M5 × 0.8 mm ; 2.38″ OAL × 1.51″ LU × 0.194″ Shank Dia. ; HSSE ; TiN ; D7 ; Series ZD
| Tool Type | Form Tap | Chamfer | 1.5-2P |
| Thread Diameter Size (TDZ) | M5 | Length Group | 3xD |
| Thread Pitch (TP) | 0.8 mm | Square Size | 0.152″ |
| Overall Length (OAL) | 2.38″ | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 0.63″ | End Shape | Bottoming |
| Usable Length (LU) | 1.51″ | Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Series/List # | ZD |
| Thread Tolerance Class (TCTR) | D7 | Shank Type | Square |
| Tapping Prehole Diameter (Pre-hole) | 0.1829″ | Lobe Count | 4 |
| Thread Standard | M | Thread Size | M5 × 0.8 mm |
| Coating | TiN |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.022
