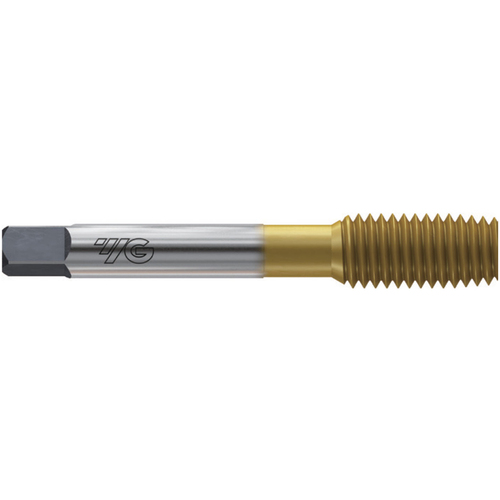

Forming Tap; 1/2″ - 20 ; 3.38″ OAL × 2.6″ LU × 0.367″ Shank Dia. ; HSS-E ; TIN ; H5 ; Series Z1
Forming Tap; 1/2″ - 20 ; 3.38″ OAL × 2.6″ LU × 0.367″ Shank Dia. ; HSSE ; TiN ; H5 ; Series Z1
| Tool Type | Form Tap | Chamfer | 4P-5P |
| Thread Diameter Size (TDZ) | 1/2″ | Length Group | 3xD |
| Overall Length (OAL) | 3.38″ | Square Size | 0.275″ |
| Thread Cutting Part Length (THL) | 1″ | Measurement Type | Inch |
| Usable Length (LU) | 2.6″ | End Shape | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | H5 | Series/List # | Z1 |
| Tapping Prehole Diameter (Pre-hole) | 0.4779″ | Shank Type | Square |
| Thread Standard | UNF | Lobe Count | 4 |
| Coating | TiN | Thread Size | 1/2″ - 20 |
| Threads per Inch (TPI) | 20 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
0.875
Package Height
0.75
Package Weight
0.129
