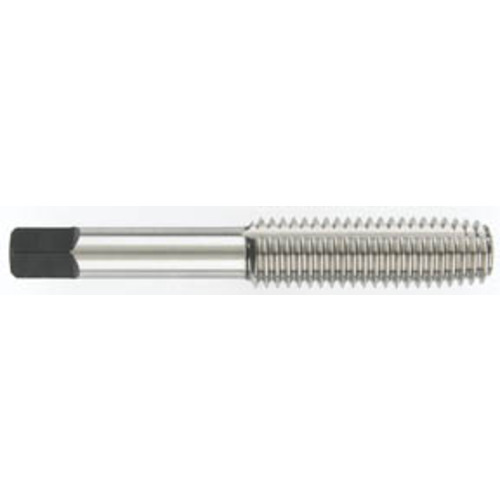

‎2105G 5-40 H5 FORM PLUG

‎Forming Tap; #5 - 40 ; 1-15/16″ OAL × 5/8″ LU × 0.141″ Shank Dia. ; HSS ; TiN ; H5 ; Series 2105G

Item # 1030884

Brand: Morse Cutting Tools

MFG #: 96286

Legacy Part #: MT3796286

UPC #: 01030884 | 68612596286 | 686125962869

Trade Name: HSS-GP

Quantity Available

Thread Diameter Size (TDZ)

Coolant Supply Property (CSP)

External

Overall Length (OAL)

‎1-15/16″

Threads per Inch (TPI)

Thread Cutting Part Length (THL)

5/8″

Chamfer

Plug

Usable Length (LU)

5/8″

Measurement Type

Machine Screw

Connection Diameter Machine Side (DCONMS)

0.141″

Cutting Edge Material

HSS

Thread Tolerance Class (TCTR)

Series/List #

2105G

Thread Standard

Lobe Count

Coating

TiN

Thread Size

‎#5 - 40

Product Features

Remarks

• Thread Forming taps cold form rather than cut the threads. Advantages include no chips to dispose of, stronger higher quality threads, increased tapping speeds, longer tap life and reduced tap breakage. Recommended for a wide variety fo ductile materials.• Lube Grooves provide a path for lubication and act as vents to relieve pressure in blind hole tapping.• Titanium Nitride (TiN) Coating results in a extremely hard surface with high lubicity for increased tool life, improved thread quality, reduced torque and increased tapping speeds tapping speeds for greater productivity.

Country of Origin

USA

Shipping Info

Package Length

3.00000

Package Width

.25000

Package Height

.25000

Package Weight

0.015
