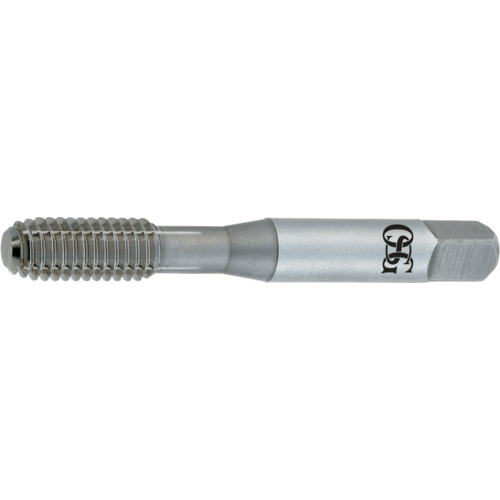

1/4-20 2B TiCN FORMING
Forming Tap; 1/4″ - 20 ; 2-1/2″ OAL × 0.255″ Shank Dia. ; HSS ; TiCN ; Series 286
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/4″ | Threads per Inch (TPI) | 20 |
| Overall Length (OAL) | 2-1/2″ | Helix Angle | 0 Degrees |
| Thread Cutting Part Length (THL) | 1″ | Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Standard | UNC | Cutting Edge Material | HSS |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Series/List # | 286 |
| Coating | TiCN | Thread Size | 1/4″ - 20 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.035
