6-32 H3 HS HY-PRO NRT

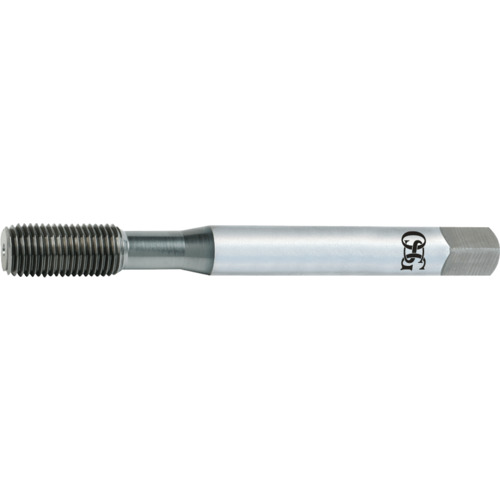

Forming Tap; #6 - 32 ; 2″ OAL × 0.708″ LU × 0.141″ Shank Dia. ; HSSCo ; Uncoated ; H3 ; Series 14001
| Tool Type | High Performance Tap | Coating | Uncoated |
| Thread Diameter Size (TDZ) | #6 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2″ | Threads per Inch (TPI) | 32 |
| Thread Cutting Part Length (THL) | 11/16″ | Chamfer | 2.5P |
| Usable Length (LU) | 0.708″ | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Style | Bottoming |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H3 | Cutting Edge Material | HSSCo |
| Thread Standard | UNC | Series/List # | 14001 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | #6 - 32 |
Product Features
| Remarks | •NRT M42 Cobalt Forming Taps •For material up to 30 HRC •Aluminum materials •Carbon steel types: 1010, 1018, 1035, 1045 & 1065 | Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
