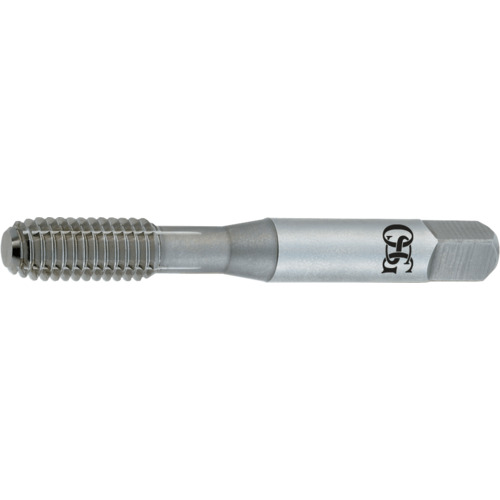

M3X0.5 6H FORMING TAP
Forming Tap; M3 × 0.5 mm ; 1-15/16″ OAL × 0.141″ Shank Dia. ; HSS ; Uncoated ; Series 286
| Tool Type | High Performance Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M3 | Chamfer | 1.5P-2P |
| Thread Pitch (TP) | 0.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 1-15/16″ | Style | Bottoming |
| Thread Cutting Part Length (THL) | 5/8″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 0 | Series/List # | 286 |
| Thread Standard | Metric | Thread Size | M3 × 0.5 |
| Coating | Uncoated |
Product Features
| Remarks | •Metric Sizes Bottoming Style •Forming taps are manufactured with lead correction allowing uniform material formation on both sides of the flank, resulting in extended tap life. These taps are designed for stainless steels, mild steels, high silicone aluminum and aluminum alloys. Best performance Aluminum materials | Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
