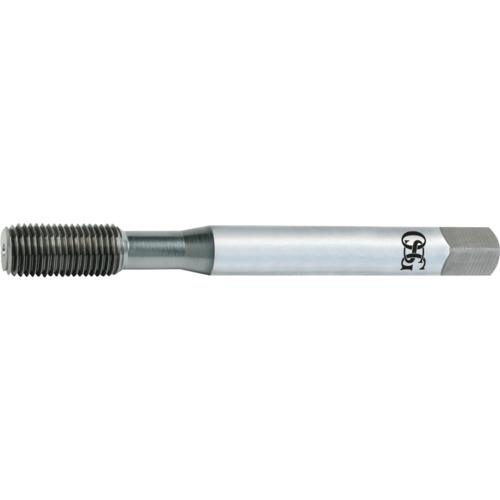

1/2-13 0 Fl H6 HSS-CO Forming Tap- TiCN
Forming Tap; 1/2″ - 13 ; 3.37″ OAL × 1.933″ LU × 0.367″ Shank Dia. ; HSSCo ; TiCN ; H6 ; Series 14001
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | 1/2″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.37″ | Threads per Inch (TPI) | 13 |
| Thread Cutting Part Length (THL) | 1-21/32″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 1.933″ | Chamfer | 2.5P |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Measurement Type | Inch |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H6 | Cutting Edge Material | HSSCo |
| Thread Standard | UNC | Series/List # | 14001 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | 1/2″ - 13 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
.70000
Package Height
.65000
Package Weight
0.17
