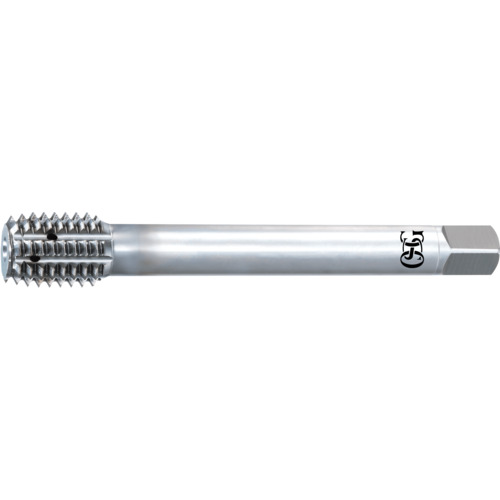

1/2-13 H8 2.5P EXOPRO CO
Forming Tap; 1/2″ - 13 ; 4.33″ OAL × 1.933″ LU × 0.367″ Shank Dia. ; HSSCo ; Vanadium ; H8 ; Series 16050
| Tool Type | High Performance Tap | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | 1/2″ | Threads per Inch (TPI) | 13 |
| Overall Length (OAL) | 4.33″ | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 1-21/32″ | Measurement Type | Inch |
| Usable Length (LU) | 1.933″ | Style | Forming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H8 | Cutting Edge Material | HSSCo |
| Thread Standard | UNC | Series/List # | 16050 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Thread Size | 1/2″ - 13 |
| Coating | Vanadium |
Product Features
| Remarks | •Cobalt High Speed Steel •Coolant Thru •OSG's V Multi-layered Coating •Din Overall Length •Modified Bottom Chamfer •Recommended for Aluminum, Carbon Steels, Alloy Steels, Die Steels up to 20 HrC, Stainless Steels and Hardened Steels up to 35 HrC | Country of Origin | Japan |
