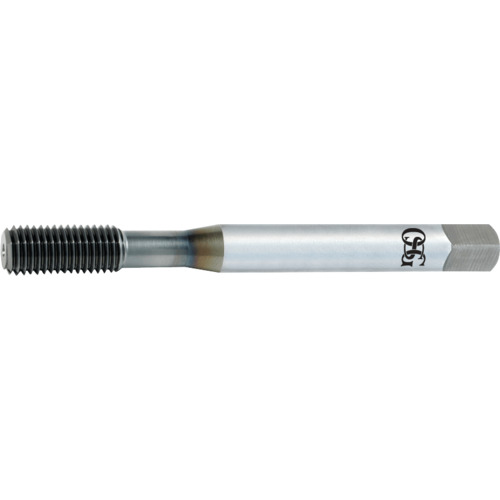

8-32 H3 HS EXOTAP NRT
Forming Tap; #8 - 32 ; 2.12″ OAL × 0.778″ LU × 0.168″ Shank Dia. ; HSS-PM ; TiCN ; H3 ; Series 14050
| Tool Type | High Performance Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | #8 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.12″ | Threads per Inch (TPI) | 32 |
| Thread Cutting Part Length (THL) | 3/4″ | Chamfer | 1.5P |
| Usable Length (LU) | 0.778″ | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Style | Forming |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H3 | Cutting Edge Material | HSS-PM |
| Thread Standard | UNC | Series/List # | 14050 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | #8 - 32 |
Product Features
| Remarks | •NRT Forming Taps •VC10 Material to achieve high-speed tapping and long tool life •TiCN Coated only •Maximize performance in tough materials such as stainless steel (35 HRC) | Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.015
