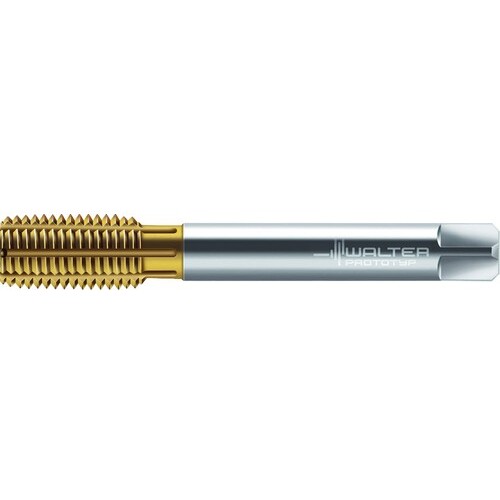

MF10x1 Metric 6HX 6 Flute HSS-E-PM TIN Thread Forming Tap
Forming Tap; M10 × 1 mm ; 90 mm OAL × 67 mm LU × 7 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX ; Series TC420
Additional Tariff Surcharge of 8 %
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | M10 | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Pitch (TP) | 1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 90 mm | Cutting Edge Material | HSSE-PM |
| Usable Length (LU) | 67 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Series/List # | TC420 |
| Flute Count (NOF) | 6 | Grade | WW60AD |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M10 × 1 |
| Thread Standard | Metric | Body Material | HSS-E-PM |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
