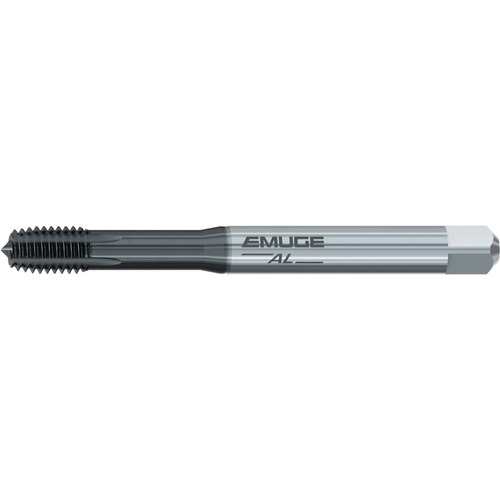

Forming Tap; M2 × 0.4 mm × 45 mm OAL × 2.8 mm Shank Dia. ; HSSE-PM ; GLT-8 ; 6HX
Forming Tap; M2 × 0.4 mm ; 45 mm OAL × 2.8 mm Shank Dia. ; HSSE-PM ; DLC ; 6HX ; Series B521Y700
| Tool Type | Forming Tap | Application | Blind Hole |
| Thread Diameter Size (TDZ) | M2 | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 0.4 mm | Coating | DLC |
| Overall Length (OAL) | 45 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Series/List # | B521Y700 |
Product Features
| Remarks | • The InnoForm AL roll form tap is designed for alluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.1
