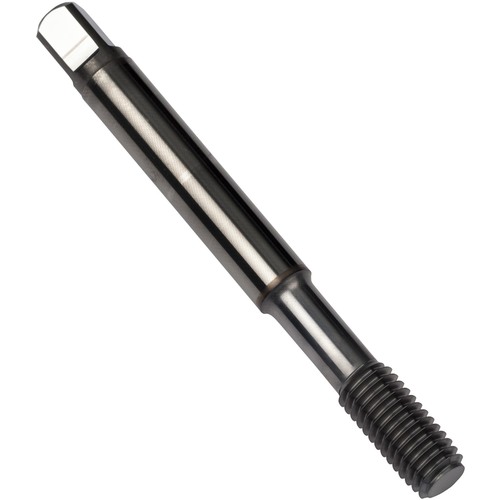

M3x0.5 Threadform Carbide Tap E-code # T215M3
Forming Tap; M3 × 0.5 mm ; 56 mm OAL × 3.5 mm Shank Dia. ; Carbide ; TiCN ; 6HX
Additional Tariff Surcharge of 8 %
| Tool Type | Form Taps | Thread Tolerance Class (TCTR) | 6HX |
| Thread Diameter Size (TDZ) | M3 | Tapping Prehole Diameter (Pre-hole) | 2.8 mm |
| Thread Pitch (TP) | 0.5 mm | Thread Standard | M |
| Overall Length (OAL) | 56 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 10 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 4 | Thread Size | M3 × 0.5 |
Product Features
| Family Description | E-code # T215M3 | Country of Origin | Germany |
Shipping Info
Package Weight
0.021
