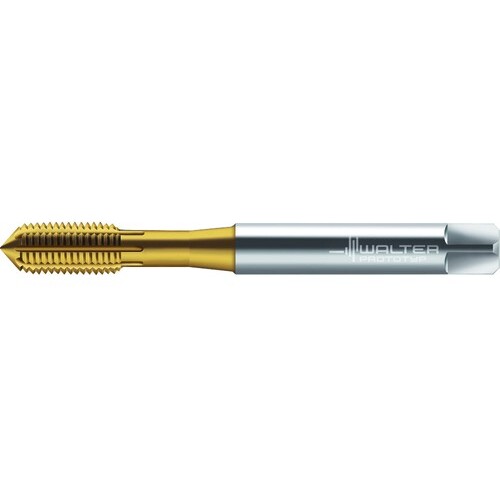

5/16″-24 UNF 2BX 5 Flute HSS-E TIN Thread Forming Tap
Forming Tap; 5/16″ - 24 ; 93.78 mm OAL × 35 mm LU × 0.318″ Shank Dia. ; HSSE ; TiN ; 2BX ; Series TC410
Additional Tariff Surcharge of 8 %
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 5/16″ | Threads per Inch (TPI) | 24 |
| Overall Length (OAL) | 93.78 mm | Measurement Type | Inch |
| Usable Length (LU) | 35 mm | Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Series/List # | TC410 |
| Thread Tolerance Class (TCTR) | 2BX | Grade | WY80AD |
| Thread Standard | UNF | Thread Size | 5/16″ - 24 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Body Material | HSS-E |
| Coating | TiN |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
