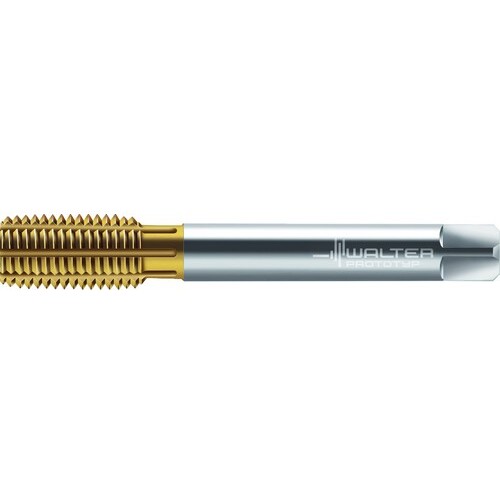

1/2″-14 G Normal 8 Flute HSS-E TIN Thread Forming Tap
Forming Tap; 1/2″ - 14 ; 125 mm OAL × 80 mm LU × 16 mm Shank Dia. ; HSSE ; TiN ; Series TC410
Additional Tariff Surcharge of 8 %
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/2″ | Threads per Inch (TPI) | 14 |
| Overall Length (OAL) | 125 mm | Measurement Type | Inch |
| Usable Length (LU) | 80 mm | Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 8 | Series/List # | TC410 |
| Thread Standard | G | Grade | WY80AD |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Thread Size | 1/2″ - 14 |
| Coating | TiN | Body Material | HSS-E |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
