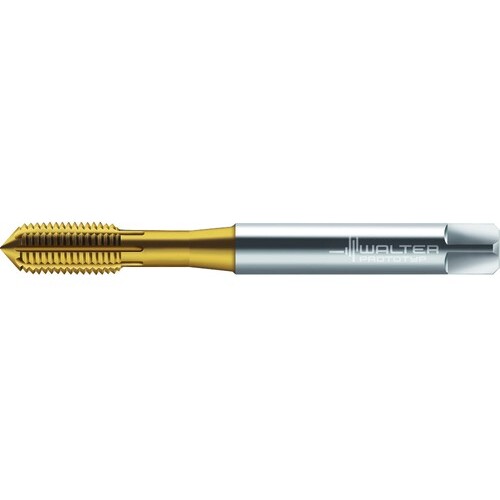

M5x0.8 Metric 7GX 5 Flute HSS-E TIN Thread Forming Tap
Forming Tap; M5 × 0.8 mm ; 72.35 mm OAL × 25 mm LU × 6 mm Shank Dia. ; HSSE ; TiN ; 7GX ; Series TC410
Additional Tariff Surcharge of 8 %
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | M5 | Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 72.35 mm | Cutting Edge Material | HSSE |
| Usable Length (LU) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | TC410 |
| Flute Count (NOF) | 5 | Grade | WY80AD |
| Thread Tolerance Class (TCTR) | 7GX | Thread Size | M5 × 0.8 |
| Thread Standard | Metric | Body Material | HSS-E |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
