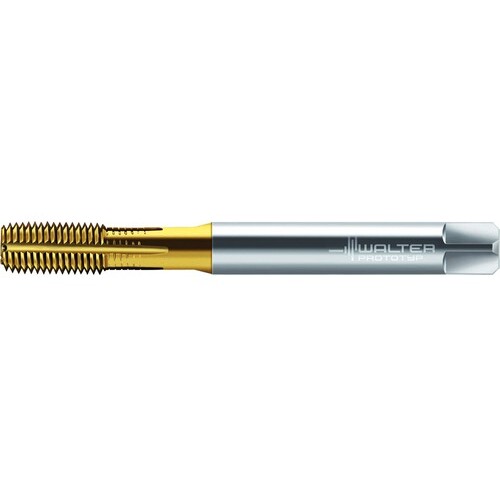

1/4″-20 UNC 2BX 5 Flute HSS-E-PM TIN Thread Forming Tap
Forming Tap; 1/4″ - 20 ; 80 mm OAL × 30 mm LU × 0.255″ Shank Dia. ; HSSE-PM ; TiN ; 2BX ; Series TC420
Additional Tariff Surcharge of 8 %
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | 1/4″ | Threads per Inch (TPI) | 20 |
| Overall Length (OAL) | 80 mm | Measurement Type | Inch |
| Usable Length (LU) | 30 mm | Cutting Edge Material | HSSE-PM |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Series/List # | TC420 |
| Thread Tolerance Class (TCTR) | 2BX | Grade | WW60AD |
| Thread Standard | UNC | Thread Size | 1/4″ - 20 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Body Material | HSS-E-PM |
| Coating | TiN |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
