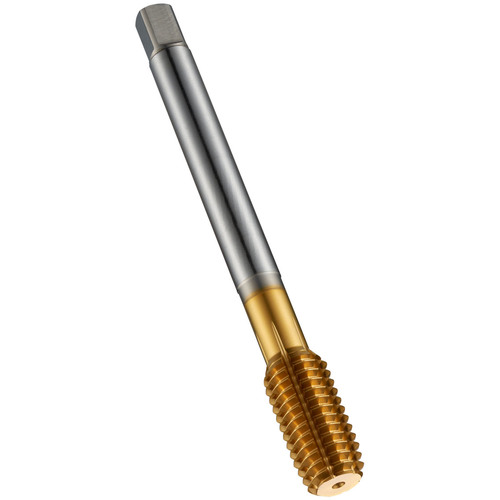

4-40 Cobalt 2BX Threadform Tap w/Grooves-TiN E-code # E2874-40
Forming Tap; #4 - 40 ; 56 mm OAL × 18 mm LU × 3.5 mm Shank Dia. ; HSSE ; TiN ; 2BX ; Series E287
Additional Tariff Surcharge of 8 %
| Tool Type | Form Taps | Tapping Prehole Diameter (Pre-hole) | 2.6 mm |
| Thread Diameter Size (TDZ) | #4 | Thread Standard | UNC |
| Overall Length (OAL) | 56 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 9 mm | Threads per Inch (TPI) | 40 |
| Usable Length (LU) | 18 mm | Measurement Type | Machine Screw |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Cutting Edge Material | HSSE |
| Flute Count (NOF) | 4 | Series/List # | E287 |
| Thread Tolerance Class (TCTR) | 2BX | Thread Size | #4 - 40 |
Product Features
| Family Description | E-code # E2874-40 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
