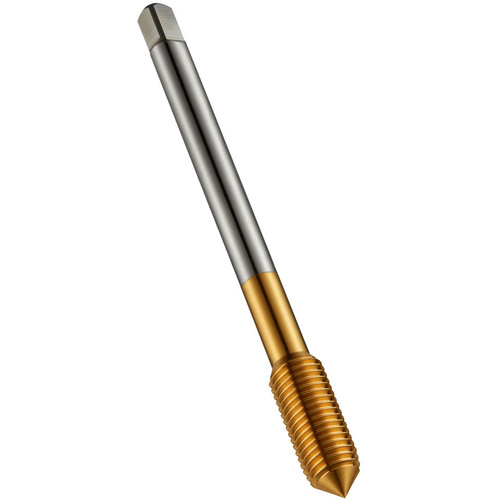

M10x1.25 Cobalt Threadform Tap w/Grooves-TiN E-code # E288M10x1.25
Forming Tap; M10 × 1.25 mm ; 100 mm OAL × 7 mm Shank Dia. ; HSSE ; TiN ; 6HX ; Series E288
Additional Tariff Surcharge of 8 %
| Tool Type | Form Taps | Tapping Prehole Diameter (Pre-hole) | 9.4 mm |
| Thread Diameter Size (TDZ) | M10 | Thread Standard | MF |
| Thread Pitch (TP) | 1.25 mm | Coating | TiN |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 20 mm | Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Series/List # | E288 |
| Flute Count (NOF) | 5 | Thread Size | M10 × 1.25 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Family Description | E-code # E288M10X1.25 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
