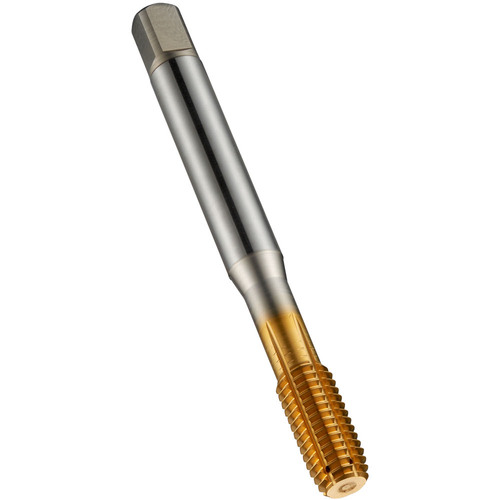

M6x1.0 Cobalt Threadform Tap w/Grooves-TiN E-code # E289M6
Forming Tap; M6 × 1 mm ; 80 mm OAL × 30 mm LU × 6 mm Shank Dia. ; HSSE ; TiN ; 6HX ; Series E289
Additional Tariff Surcharge of 8 %
| Tool Type | Form Taps | Thread Tolerance Class (TCTR) | 6HX |
| Thread Diameter Size (TDZ) | M6 | Tapping Prehole Diameter (Pre-hole) | 5.5 mm |
| Thread Pitch (TP) | 1 mm | Thread Standard | M |
| Overall Length (OAL) | 80 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 15 mm | Measurement Type | Metric |
| Usable Length (LU) | 30 mm | Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | E289 |
| Flute Count (NOF) | 5 | Thread Size | M6 × 1 |
Product Features
| Family Description | E-code # E289M6 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
