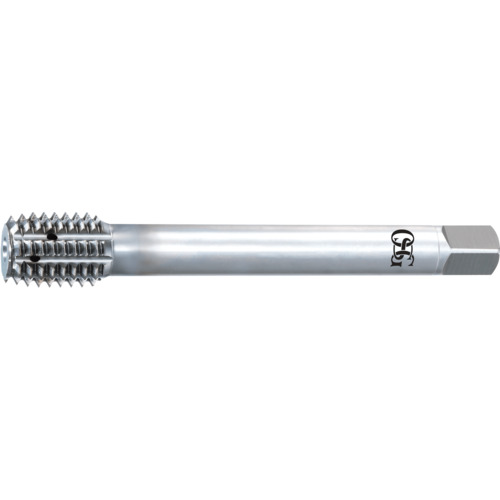

M12X1.75 D11 1.5P EXOPRO OIL-S
Forming Tap; M12 ; 110 mm OAL × 49.1 mm LU × 9.32 mm Shank Dia. ; HSSCo ; Vanadium ; D11 ; Series 16150
| Tool Type | Forming Tap | Coating | Vanadium |
| Thread Diameter Size (TDZ) | M12 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Chamfer | 1.5P |
| Thread Cutting Part Length (THL) | 17 mm | Square Size | 6.98 mm |
| Usable Length (LU) | 49.1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | D11 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Pack Size | 1 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | 16150 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.145
