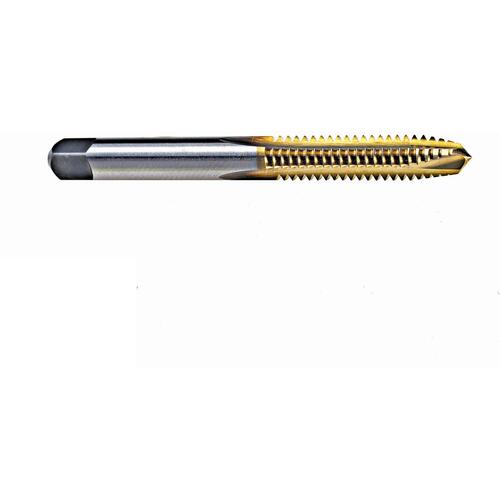

1/4-20 3FL H-3 TIN COAT SPPT BOTTOM TAPS (32633) W57
Spiral Point Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSS ; TiN ; H3 ; Series 102C
Additional Tariff Surcharge of 6 %
| Thread Standard | NC | Thread Cutting Part Length (THL) | 1″ |
| Thread Size | 1/4″ - 20 | Drive Size (DRVS) | 0.191″ |
| Thread Diameter Size (TDZ) | 1/4″ | Flute Length | 1″ |
| Threads per Inch (TPI) | 20 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | End Shape | Spiral Point |
| Usable Length (LU) | 1″ | Style | Bottom |
| Overall Length (OAL) | 2-1/2″ | Shank Type | Round |
| Coating | TiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Square Size | 0.191″ × 5/16″ |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Tool Type | Tap | Series/List # | 102C |
| Connection Diameter Machine Side (DCONMS) | 0.191″ | Grade | HSS |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
