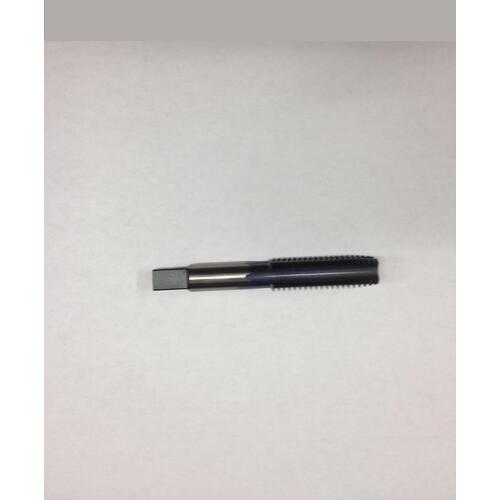

1-8 3FL H-4 BLUE DIAMOND TREAT SPPT PLUG TAPS (35052) WH17
Spiral Point Tap; 1″ - 8 ; 5-1/8″ OAL ; 3 FL ; HSS ; AlTiSiN ; H4 ; Series 102C
Additional Tariff Surcharge of 6 %
| Thread Standard | NC | Thread Cutting Part Length (THL) | 2-1/2″ |
| Thread Size | 1″ - 8 | Drive Size (DRVS) | 0.6″ |
| Thread Diameter Size (TDZ) | 1″ | Flute Length | 2-1/2″ |
| Threads per Inch (TPI) | 8 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H4 | End Shape | Spiral Point |
| Usable Length (LU) | 2-1/2″ | Style | Plug |
| Overall Length (OAL) | 5-1/8″ | Shank Type | Round |
| Coating | AlTiSiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Square Size | 0.600″ X1-3/16″ |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Tool Type | Tap | Series/List # | 102C |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | Grade | HSS |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.262
