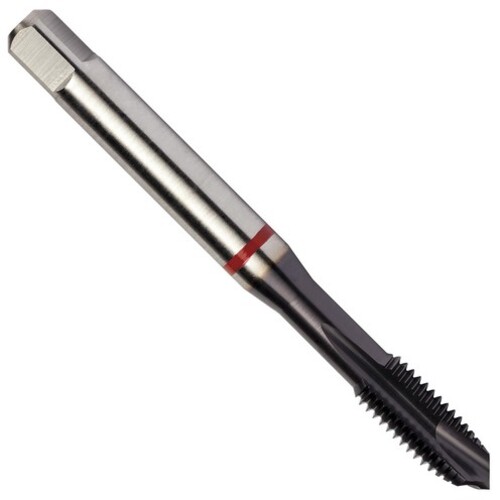

7/16-20 3 Flute H5 HSS-E PM DIN ANSI Machine Tap - Red Shark for Alloy Steels - Plug Style E-code # E9117/16
Spiral Point Tap; 7/16″ - 20 ; 3.937″ OAL ; 3 FL ; HSSE-PM ; TiAlN ; H5 ; Series E911
Additional Tariff Surcharge of 8 %
| Thread Standard | UNF | Applicable Material | | Steel | |
| Thread Size | 7/16″ - 20 | Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Thread Diameter Size (TDZ) | 7/16″ | Thread Cutting Part Length (THL) | 0.787″ |
| Threads per Inch (TPI) | 20 | Tapping Prehole Diameter (Pre-hole) | 25/64″ |
| Thread Tolerance Class (TCTR) | H5 | Flute Length | 0.787″ |
| Overall Length (OAL) | 3.937″ | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Standard | DIN ANSI | Measurement Type | Inch |
| Tool Type | Machine Tap | Series/List # | E911 |
| Special Feature | Red Shark |
Product Features
| Family Description | E-code # E9117/16 | Country of Origin | India |
Shipping Info
Package Length
5.00000
Package Width
.67300
Package Height
.64900
Package Weight
0.086
