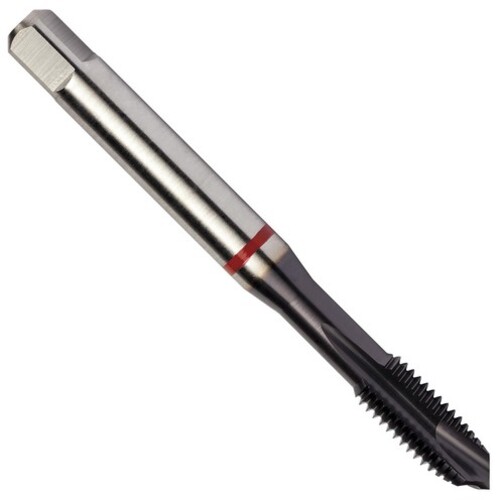

1-8 4 Flute H6 HSS-E PM DIN ANSI Machine Tap - Red Shark for Alloy Steels - Plug Style E-code # E8111
Spiral Point Tap; 1″ - 8 ; 6.299″ OAL ; 4 FL ; HSSE-PM ; TiAlN ; H6 ; Series E811
Additional Tariff Surcharge of 8 %
| Thread Standard | UNC | Applicable Material | | Steel | |
| Thread Size | 1″ - 8 | Connection Diameter Machine Side (DCONMS) | 0.8″ |
| Thread Diameter Size (TDZ) | 1″ | Thread Cutting Part Length (THL) | 1.417″ |
| Threads per Inch (TPI) | 8 | Tapping Prehole Diameter (Pre-hole) | 7/8″ |
| Thread Tolerance Class (TCTR) | H6 | Flute Length | 1.417″ |
| Overall Length (OAL) | 6.299″ | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Standard | DIN ANSI | Measurement Type | Inch |
| Tool Type | Machine Tap | Series/List # | E811 |
| Special Feature | Red Shark |
Product Features
| Family Description | E-code # E8111 | Country of Origin | India |
Shipping Info
Package Length
6.43500
Package Width
1.12500
Package Height
1.12500
Package Weight
0.85
