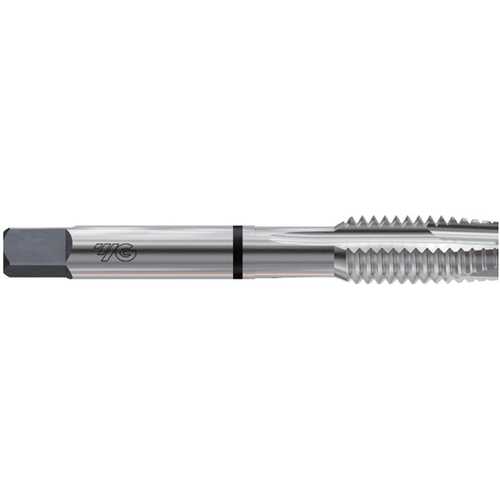

Spiral Point Tap; #4 - 40 ; 1.88″ OAL ; 2 FL ; HSS-EX ; Bright ; H2 ; Series T4
Spiral Point Tap; #4 - 40 ; 1.88″ OAL ; 2 FL ; HSS-EX ; Uncoated ; H2 ; Series T4
| Thread Standard | UNC | Special Feature | Black Ring |
| Thread Size | #4 - 40 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | #4 | Thread Cutting Part Length (THL) | 0.335″ |
| Threads per Inch (TPI) | 40 | Drive Size (DRVS) | 0.11″ |
| Thread Tolerance Class (TCTR) | H2 | Tapping Prehole Diameter (Pre-hole) | 0.0893″ |
| Usable Length (LU) | 0.563″ | End Shape | Plug |
| Overall Length (OAL) | 1.88″ | Shank Type | Square |
| Chamfer | 4P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Length Group | 3xD |
| Flute Count (NOF) | 2 | Square Size | 0.11″ |
| Cutting Edge Material | HSS-EX | Measurement Type | Wire Gauge |
| Standard | 302A | Series/List # | T4 |
| Tool Type | Combo Tap |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.011
