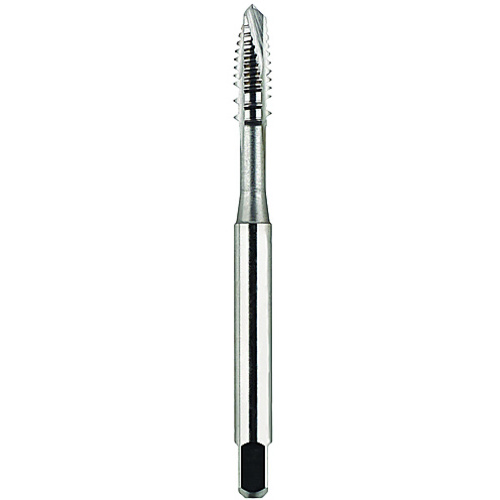

10-32 Dia. - GH2 - 3 FL - Premium - HSS - CrN - Plug - Spiral Point Tap Series/List #2092S
Spiral Point Tap; #10 - 32 ; 2-3/8″ OAL ; 3 FL ; HSS-PM ; CrN ; H2 ; Series 2092S
| Thread Standard | NF | Tool Type | High Performance Tap |
| Thread Size | #10 - 32 | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | #10 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Threads per Inch (TPI) | 32 | Thread Cutting Part Length (THL) | 1/2″ |
| Thread Tolerance Class (TCTR) | H2 | Drive Size (DRVS) | 0.152″ |
| Usable Length (LU) | 7/8″ | Flute Type | Straight |
| Overall Length (OAL) | 2-3/8″ | Style | Spiral Point |
| Chamfer | Plug | Cutting Direction (HAND) | Right Hand |
| Coating | CrN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Machine Screw |
| Cutting Edge Material | HSS-PM | Series/List # | 2092S |
Product Features
| Remarks | ? |
Country of Origin | USA |
Shipping Info
Package Length
2.40000
Package Width
.10000
Package Height
.10000
Package Weight
0.03
