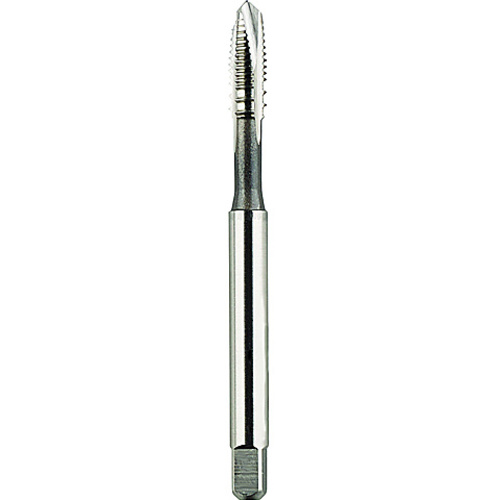

2092M HPT M5 × 0.80 S/P
Spiral Point Tap; M5 × 0.8 mm ; 2-3/8″ OAL ; 3 FL ; HSS-PM ; Uncoated ; D4 ; Series 2092M
| Thread Standard | NC | Tool Type | High Performance Tap |
| Thread Size | M5 × 0.8 | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M5 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Pitch (TP) | 0.8 mm | Thread Cutting Part Length (THL) | 1/2″ |
| Thread Tolerance Class (TCTR) | D4 | Drive Size (DRVS) | 0.152″ |
| Usable Length (LU) | 7/8″ | Flute Type | Straight |
| Overall Length (OAL) | 2-3/8″ | Style | Spiral Point |
| Chamfer | Plug | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM | Series/List # | 2092M |
Product Features
| Remarks | ? |
Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.02
