2097C HPT 10-32 S/P H3

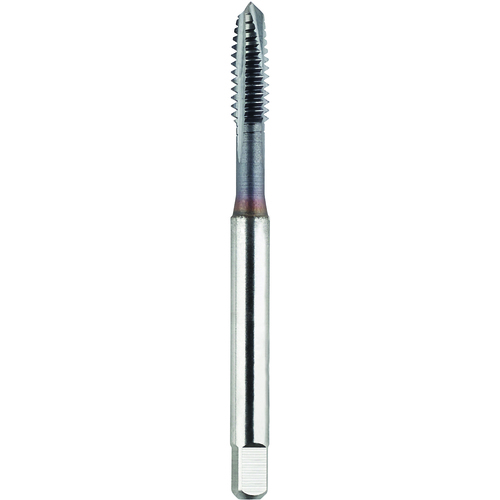

Spiral Point Tap; #10 - 32 ; 2-3/8″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 2097C
| Thread Standard | NF | Cutting Edge Material | HSS-PM |
| Thread Size | #10 - 32 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | #10 | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 1/2″ |
| Usable Length (LU) | 7/8″ | Style | Spiral Point |
| Overall Length (OAL) | 2-3/8″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Measurement Type | Machine Screw |
| Flute Count (NOF) | 3 | Series/List # | 2097C |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.03
