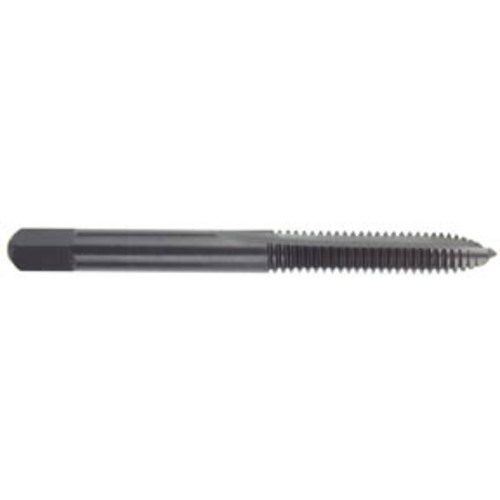

2070X 2-56 S/P PLUG H2
Spiral Point Tap; #2 - 56 ; 1-3/4″ OAL ; 2 FL ; HSS ; Black Oxide ; H2 ; Series 2070X
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | #2 - 56 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | #2 | Thread Cutting Part Length (THL) | 7/16″ |
| Threads per Inch (TPI) | 56 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H2 | End Shape | Spiral Point |
| Usable Length (LU) | 7/16″ | Style | Plug |
| Overall Length (OAL) | 1-3/4″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | Black Oxide | Measurement Type | Machine Screw |
| Flute Count (NOF) | 2 | Series/List # | 2070X |
Product Features
| Remarks | • |
Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.006
