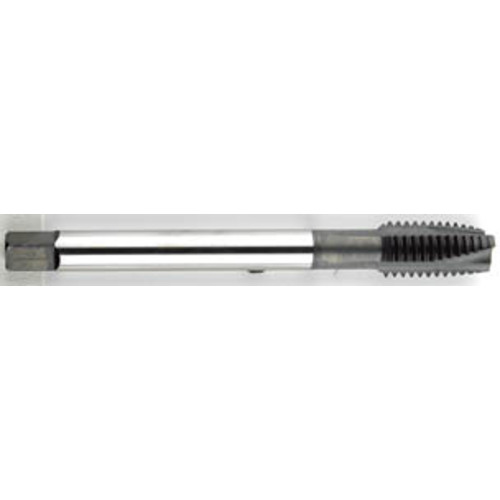

‎2088 HPT 5/16-18 S/P H3

‎Spiral Point Tap; 5/16″ - 18 ; 3.543″ OAL ; 3 FL ; HSS-PM ; Steam Oxide ; H3 ; Series 2088

Item # 1031702

Brand: Morse Cutting Tools

MFG #: 30543

Legacy Part #: MT4230543

UPC #: 01031702 | 68612530543 | 686125305437

Trade Name: HSS-PM

Quantity Available

Thread Standard

Cutting Edge Material

HSS-PM

Thread Size

‎5/16″ - 18

Tool Type

High Performance Tap

Thread Diameter Size (TDZ)

5/16″

Applicable Material

| Steel | Stainless Steel | Super-Alloys / Titanium |

Threads per Inch (TPI)

Connection Diameter Machine Side (DCONMS)

0.318″

Thread Tolerance Class (TCTR)

Thread Cutting Part Length (THL)

0.787″

Usable Length (LU)

1.378″

Style

Spiral Point

Overall Length (OAL)

3.543″

Cutting Direction (HAND)

Right Hand

Chamfer

Plug

Coolant Supply Property (CSP)

External

Coating

Steam Oxide

Measurement Type

Inch

Flute Count (NOF)

Series/List #

2088

Product Features

Remarks

‎• HPT†- High Performance Tap - DIN Length• Recommended for steels, steel alloys, stainless steels, titanium alloys and a wide variety of materials up to 36Rc hardness.• Spiral†Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.• Plug†Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

4.00000

Package Width

.38000

Package Height

.38000

Package Weight

0.11
