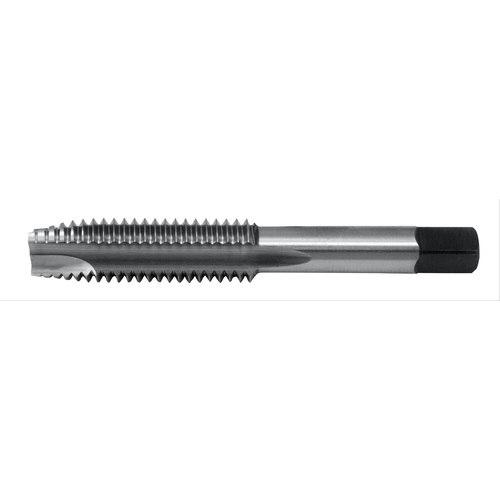

#4-40 UNC 2 Flute HSS Standard Plug Chamfer Spiral Point Tap- Bright
Spiral Point Tap; #4 - 40 ; 1-7/8″ OAL ; 2 FL ; HSS ; Uncoated ; H2 ; Series 0411
| Thread Standard | NC | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Size | #4 - 40 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | #4 | Thread Cutting Part Length (THL) | 9/16″ |
| Threads per Inch (TPI) | 40 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H2 | End Shape | Square |
| Overall Length (OAL) | 1-7/8″ | Style | Plug |
| Chamfer | Plug | Shank Type | Round w/ Drive Square |
| Coating | Uncoated | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Length Group | 2D |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Tool Type | Machine Tap | Series/List # | 0411 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.007
