M4X0.7 D4 2FL HS SP PT

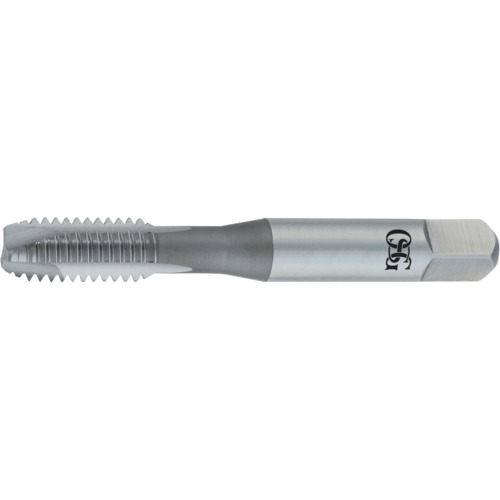

Spiral Point Tap; M4 × 0.7 mm ; 2-1/8″ OAL ; 2 FL ; HSS ; Black Oxide ; D4 ; Series 142
| Thread Standard | Metric | Cutting Edge Material | HSS |
| Thread Size | M4 × 0.7 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M4 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 0.7 mm | Connection Diameter Machine Side (DCONMS) | 4.26 mm |
| Thread Tolerance Class (TCTR) | D4 | Thread Cutting Part Length (THL) | 3/4″ |
| Usable Length (LU) | 19 mm | End Shape | Chamfer |
| Overall Length (OAL) | 2-1/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 142 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
