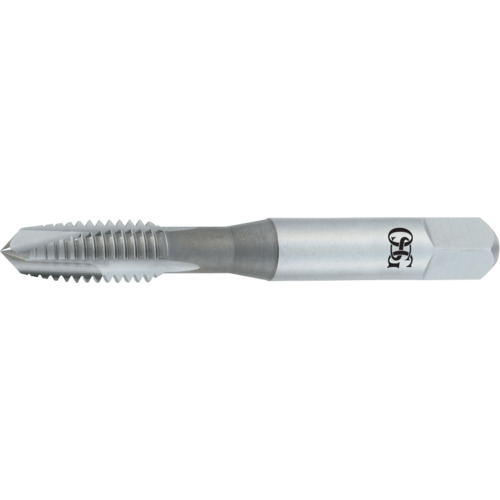

3/8-24 3FL 3B High Speed Steel Spiral Point Tap - TIN
Spiral Point Tap; 3/8″ - 24 ; 2-15/16″ OAL ; 3 FL ; HSS ; TiN ; 3B ; Series 288
| Thread Standard | NF | Cutting Edge Material | HSS |
| Thread Size | 3/8″ - 24 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Thread Tolerance Class (TCTR) | 3B | Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 1.236″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiN | Series/List # | 288 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.55000
Package Weight
0.08
