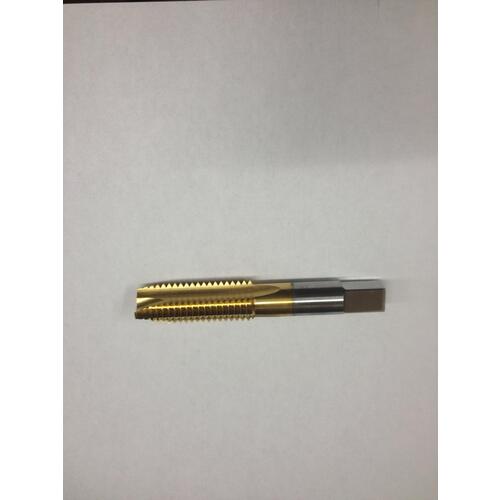

3/4-16 3FL H-3 TIN COAT SPPT BOTTOM TAPS (34633) W114
Spiral Point Tap; 3/4″ - 16 ; 4-1/4″ OAL ; 3 FL ; HSS ; TiN ; H3 ; Series 102C
Additional Tariff Surcharge of 6 %
| Thread Standard | NF | Thread Cutting Part Length (THL) | 2″ |
| Thread Size | 3/4″ - 16 | Drive Size (DRVS) | 0.442″ |
| Thread Diameter Size (TDZ) | 3/4″ | Flute Length | 2″ |
| Threads per Inch (TPI) | 16 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | End Shape | Spiral Point |
| Usable Length (LU) | 2″ | Style | Bottom |
| Overall Length (OAL) | 4-1/4″ | Shank Type | Round |
| Coating | TiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Square Size | 0.442″ × 1-1/16″ |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Tool Type | Tap | Series/List # | 102C |
| Connection Diameter Machine Side (DCONMS) | 0.442″ | Grade | HSS |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.597
