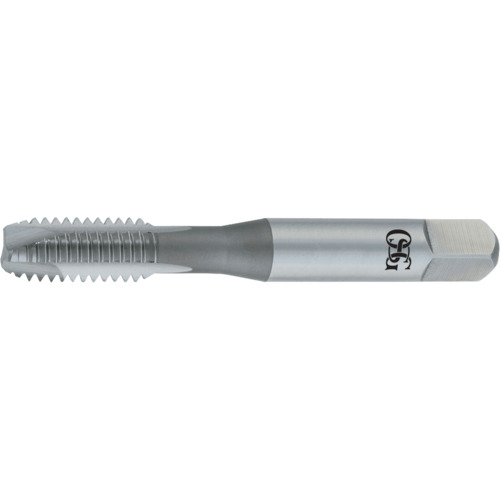

M12X1.5 D6 3FL HS SP PT
Spiral Point Tap; M12 × 1.5 mm ; 3-3/8″ OAL ; 3 FL ; HSS ; Uncoated ; D6 ; Series 142
| Thread Standard | Metric | Cutting Edge Material | HSS |
| Thread Size | M12 × 1.5 | Tool Type | General Purpose Tap |
| Thread Diameter Size (TDZ) | M12 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 9.32 mm |
| Thread Tolerance Class (TCTR) | D6 | Thread Cutting Part Length (THL) | 1-21/32″ |
| Usable Length (LU) | 35 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 3-3/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 142 |
Product Features
| Remarks | •High Speed Steel •Ground thread | Country of Origin | Mexico |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.112
