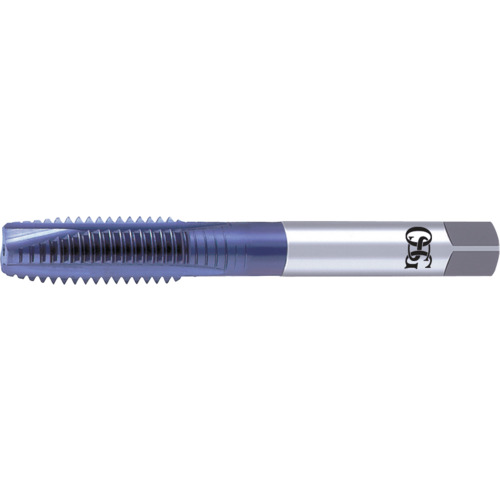

6-32 H3 3F HS SP PT
Spiral Point Tap; #6 - 32 ; 2″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 312TI
| Thread Standard | NC | Cutting Edge Material | HSS-PM |
| Thread Size | #6 - 32 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | #6 | Applicable Material | | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 11/16″ |
| Usable Length (LU) | 0.688″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Wire Gauge |
| Coating | TiCN | Series/List # | 312TI |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •List 3121Ti-vc, EXOTAP VC–10TI spiral point •High Performance Tap For Titanium Alloys •Available TiCN Finish Only •6Al4V Titanium •Hardened Steel up to 35 HRC | Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.01
