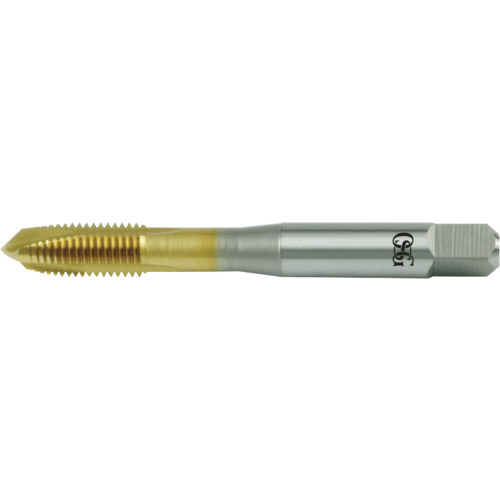

1/4-20 Dia. - ,H4-3 FL - HSSE - TiN - Plug - Spiral Point Tap
Spiral Point Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSSCo ; TiN ; H4 ; Series 11015
| Thread Standard | NC | Cutting Edge Material | HSSCo |
| Thread Size | 1/4″ - 20 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 20 | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Tolerance Class (TCTR) | H4 | Thread Cutting Part Length (THL) | 1″ |
| Usable Length (LU) | 1.122″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-1/2″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiN | Series/List # | 11015 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.45000
Package Weight
0.035
