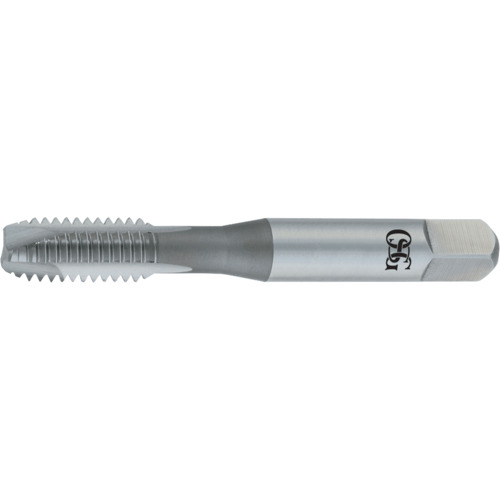

M6x1.0 2Fl +0.005 HSS Spiral Point Tap-Bright
Spiral Point Tap; M6 × 1 mm ; 2-1/2″ OAL ; 2 FL ; HSS ; Uncoated ; 0.005 ; Series 142H
| Thread Standard | Metric | Cutting Edge Material | HSS |
| Thread Size | M6 × 1 | Tool Type | 0.005 Oversize Tap |
| Thread Diameter Size (TDZ) | M6 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1 mm | Connection Diameter Machine Side (DCONMS) | 6.47 mm |
| Thread Tolerance Class (TCTR) | 0.005 | Thread Cutting Part Length (THL) | 1″ |
| Usable Length (LU) | 26 mm | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 2-1/2″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Metric |
| Coating | Uncoated | Series/List # | 142H |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.03
