8-32 H7 2FL HSS PLUG SP

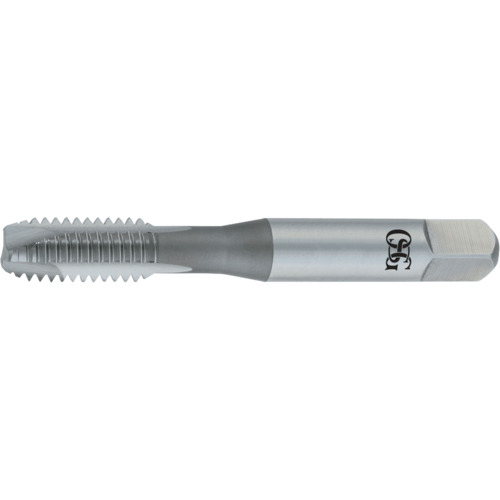

Spiral Point Tap; #8 - 32 ; 2-1/8″ OAL ; 2 FL ; HSS ; Uncoated ; H7 ; Series 105+
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | #8 - 32 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #8 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Thread Tolerance Class (TCTR) | H7 | Thread Cutting Part Length (THL) | 3/4″ |
| Usable Length (LU) | 3/4″ | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 2-1/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 105+ |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
2.95000
Package Width
.45000
Package Height
.40000
Package Weight
0.01
