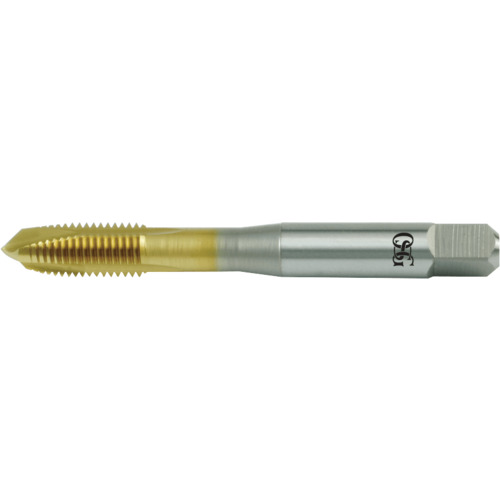

M6 1.0 Dia. - H12-3 FL - HSSE - TiN - Plug - Spiral Point Tap
Spiral Point Tap; M6 × 1 mm ; 2-1/2″ OAL ; 3 FL ; HSSCo ; TiN ; D12 ; Series 11115
| Thread Standard | Metric | Cutting Edge Material | HSSCo |
| Thread Size | M6 × 1 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M6 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1 mm | Connection Diameter Machine Side (DCONMS) | 6.47 mm |
| Thread Tolerance Class (TCTR) | D12 | Thread Cutting Part Length (THL) | 1″ |
| Usable Length (LU) | 29 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 2-1/2″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Metric |
| Coating | TiN | Series/List # | 11115 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.55000
Package Width
.45000
Package Height
.40000
Package Weight
0.035
