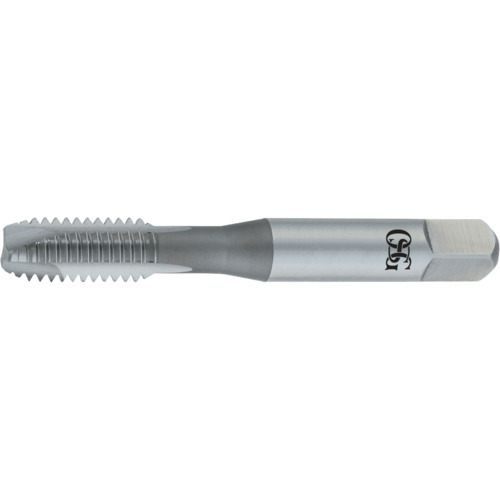

M18 1.5 D6 3FL PLUG S/O SP PT TAP
Spiral Point Tap; M18 × 1.5 mm ; 4-1/32″ OAL ; 3 FL ; HSS ; Black Oxide ; D6 ; Series 142
| Thread Standard | Metric | Cutting Edge Material | HSS |
| Thread Size | M18 × 1.5 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M18 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 13.76 mm |
| Thread Tolerance Class (TCTR) | D6 | Thread Cutting Part Length (THL) | 1-13/16″ |
| Usable Length (LU) | 41 mm | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 4-1/32″ | Style | Plug |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 142 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.25000
Package Width
1.00000
Package Height
.90000
Package Weight
0.265
