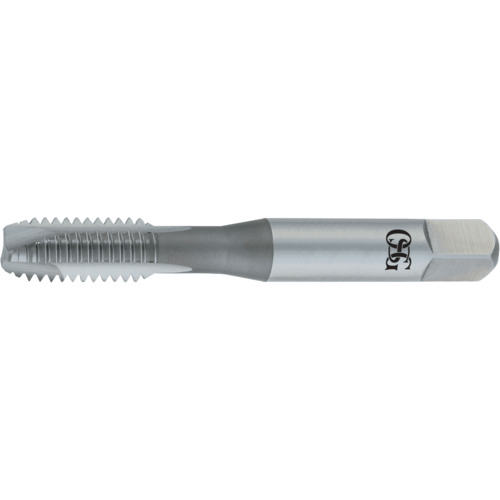

#2-56 Dia-H2-2 FL-HSS-Bright-Bottoming Spiral Point Tap
Spiral Point Tap; #2 - 56 ; 1-3/4″ OAL ; 2 FL ; HSS ; Uncoated ; H2 ; Series 105B
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | #2 - 56 | Tool Type | General Purpose Tap |
| Thread Diameter Size (TDZ) | #2 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 56 | Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Thread Tolerance Class (TCTR) | H2 | Thread Cutting Part Length (THL) | 7/16″ |
| Usable Length (LU) | 0.48″ | End Shape | Spiral Point |
| Overall Length (OAL) | 1-3/4″ | Style | Bottoming |
| Chamfer | 1.5P-2P | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 105B |
Product Features
| Remarks | •Machine screw sizes •Spiral point - bottoming style - 2 flute ground thread - high speed steel | Country of Origin | Japan |
Shipping Info
Package Length
2.35000
Package Width
.40000
Package Height
.35000
Package Weight
0.008
