M12X1.0 D5 3FL SP PT TAP

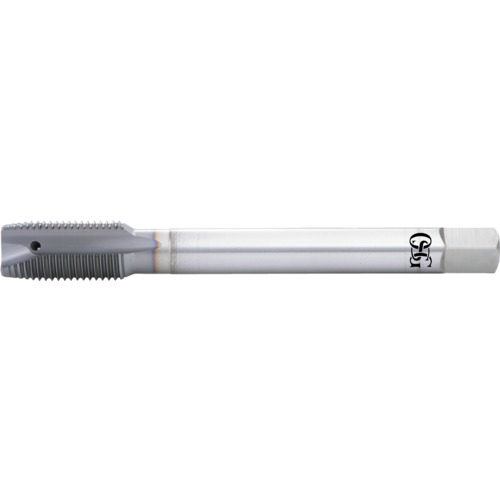

Spiral Point Tap; M12 × 1 mm ; 100 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; D5 ; Series 16550
| Thread Standard | Metric | Cutting Edge Material | HSS-PM |
| Thread Size | M12 × 1 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | M12 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1 mm | Connection Diameter Machine Side (DCONMS) | 9.32 mm |
| Thread Tolerance Class (TCTR) | D5 | Thread Cutting Part Length (THL) | 21 mm |
| Usable Length (LU) | 32 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P | Measurement Type | Metric |
| Coating | Vanadium | Series/List # | 16550 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
8.05000
Package Width
1.85000
Package Height
.65000
Package Weight
0.125
